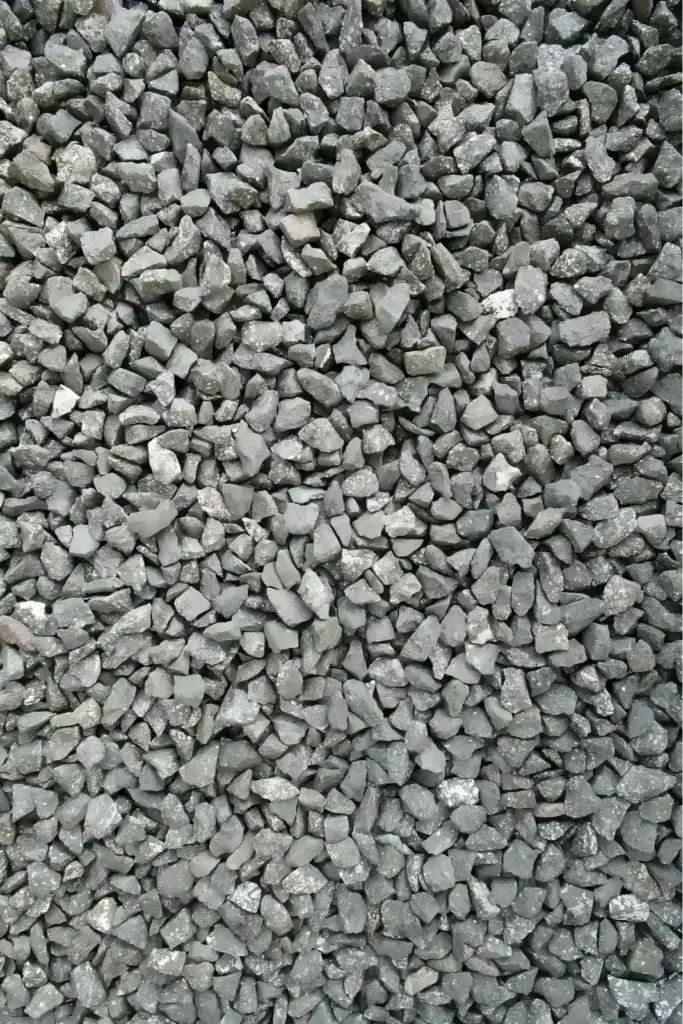

Zirconia Fused Alumina
Zirconia fused alumina is a high-performance abrasive mineral produced by fusing aluminum oxide and zirconium oxide (ZrO₂) together in an electric arc furnace. The resulting eutectic structure delivers exceptional toughness, outstanding impact resistance, and superior thermal stability — making it the preferred abrasive for heavy-duty grinding and demanding industrial applications.
What Is Zirconia Fused Alumina?
Zirconia fused alumina (ZFA) is an advanced synthetic abrasive mineral produced by co-fusing high-purity aluminum oxide (Al₂O₃) and zirconium oxide (ZrO₂) in an electric arc furnace at temperatures exceeding 2000°C. The two oxides combine to form a fine-grained eutectic microstructure — a unique interlocking crystalline network that fundamentally transforms the material’s mechanical performance beyond what either oxide could achieve independently.
Depending on the formulation, zirconia fused alumina typically contains between 15% and 40% ZrO₂, with the remainder being Al₂O₃. This precise compositional balance produces a material of exceptional toughness, high impact resistance, and outstanding thermal stability. The characteristic gray to off-white color of ZFA reflects its dense, homogeneous microstructure formed during the controlled solidification process.
Available in a range of macro grits and specialized grain formats, zirconia fused alumina is engineered specifically for the most demanding heavy-duty grinding applications — particularly those involving high-pressure, high-speed material removal on tough metals and alloys where conventional abrasives wear out too quickly.
Why Choose Zirconia Fused Alumina?
-
Unmatched Toughness for Heavy-Duty Grinding : The eutectic microstructure of zirconia fused alumina delivers toughness levels far superior to both white and brown fused alumina. It withstands extreme grinding pressures without premature grain fracture, making it ideal for aggressive stock removal operations on stainless steel, titanium, and high-tensile alloys.
-
Superior Impact & Shock Resistance: ZFA's interlocking crystal network absorbs and distributes mechanical shock exceptionally well. This impact resistance significantly reduces grain pullout and wheel breakdown in high-pressure grinding applications, resulting in longer wheel life and lower cost per part ground.
-
Excellent Thermal Stability Under Extreme Conditions: Zirconia fused alumina maintains its structural integrity at very high operating temperatures. Its resistance to thermal shock makes it a dependable abrasive choice in applications where intense localized heat generation is unavoidable.
- Extended Abrasive Tool Life:The combination of toughness and controlled friability means ZFA grains self-sharpen progressively rather than fracturing catastrophically. This controlled wear behavior extends grinding wheel service life and maintains consistent cutting performance over longer operational cycles.
-
Optimized for High-Pressure Grinding Operations: Zirconia fused alumina is specifically engineered to excel under high contact pressures. It consistently outperforms standard alumina abrasives in creep-feed grinding, heavy snagging, and weld removal applications where maximum material removal rate is the priority.
Industry Challenges
High Production Cost
Precise ZrO₂ Content Control
Limited Zirconium Raw Material Supply
Complex Solidification Process Management
Product overview
الألومينا
ZCO-F-AUT/G500
Why Use Our Zirconia Fused Alumina
Exceptional Toughness via Eutectic Microstructure
The unique Al₂O₃-ZrO₂ eutectic structure delivers toughness levels far beyond conventional fused alumina. This interlocking crystalline network resists grain fracture under extreme grinding pressures, significantly extending abrasive tool life in the most demanding heavy-duty material removal operations.
Outstanding Impact & Shock Resistance
Zirconia fused alumina absorbs and distributes mechanical impact forces exceptionally well. This superior shock resistance minimizes grain pullout and premature wheel breakdown during high-pressure grinding, reducing media consumption and maintaining consistent cutting performance throughout extended operational cycles.
High Material Removal Rate
The combination of hardness and controlled self-sharpening behavior enables aggressive, efficient stock removal on tough metals including stainless steel, carbon steel, and high-tensile alloys — delivering higher productivity per grinding cycle compared to standard alumina abrasives.
